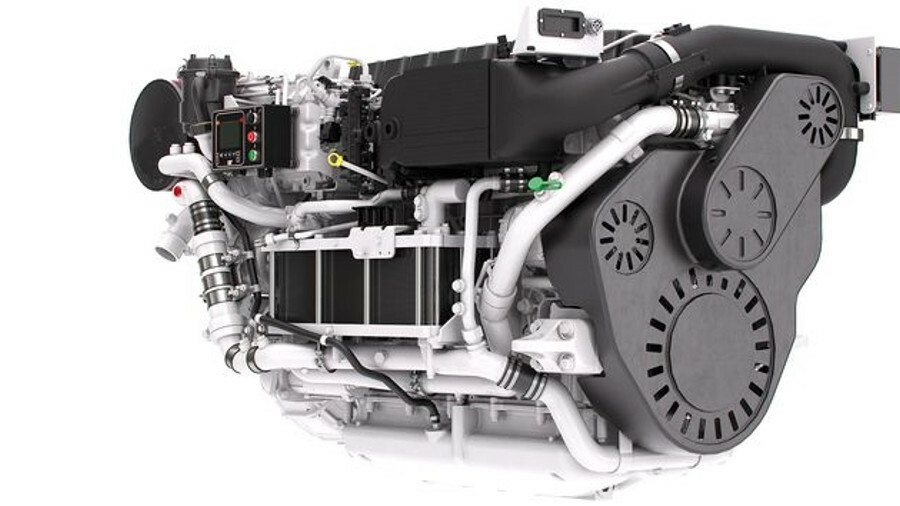

Caterpillar C12.9 Marine Engine: 850-1000HP Tier 3 Power for Commercial & Yacht Duty
Deliver proven Caterpillar torque and Tier 3 compliance in a 12.9L in-line 6-cylinder built for workboats, trawlers, and high-performance yachts.
At Wave Inboard Motors, we’ve repowered and serviced over 90 Caterpillar C12.9 engines since its 2017 launch, from offshore crew boats in the Gulf to luxury trawler yachts in the Pacific Northwest—tuning ACERT injection for bulletproof reliability under continuous loads. As authorized Cat marine dealers, our technicians live and breathe the C12.9 platform, from HEUI diagnostics to aftercooler retrofits in salt-heavy environments—ensuring the uptime commercial fleets demand. If you’re ready for a marine engine installation service to drop in this modern classic, our team guarantees perfect fitment. The C12.9 remains the go-to replacement for legacy C12 ACERT and 3196 owners who want Tier 3 compliance without SCR complexity.
The Caterpillar C12.9 dominates commercial marine propulsion and high-end yacht applications for vessels 50-100 feet, where its ACERT evolution delivers precise fueling for 2,000+ Nm torque while meeting EPA Tier 3 and IMO Tier II emissions—no urea required. Ideal for operators seeking drop-in repower compatibility with existing C12 beds, it offers ratings from 850-1000hp with keel or heat exchanger cooling. Backed by our boat repower consultation data, C12.9 swaps routinely extend vessel life 12+ years with 99% uptime in mixed fleets. Our CAT repower expertise minimizes downtime, maximizing ROI with Caterpillar’s unmatched global support.
Technical Specifications
| Specification | Details |
|---|---|
| Model | C12.9 |
| Engine Type | In-line 6-cylinder, 4-stroke, direct-injected turbocharged diesel with ACERT technology |
| Displacement | 12.9 L (787 cu in) |
| Max Output (HP/kW) | 850-1000 HP / 625-735 kW @ 2300 rpm (commercial & pleasure ratings) |
| Bore x Stroke | 135 mm x 150 mm (5.31 in x 5.91 in) |
| Compression Ratio | 16.3:1 |
| Cooling System | Heat exchanger or keel cooling |
| Starting System | Electric 24V |
| Alternator Output | 24V – 110A (standard) |
| Dry Weight | 1,325 kg (2,921 lbs) without gear |
| Dimensions (L x W x H) | 1,478 x 1,021 x 1,121 mm (58 x 40 x 44 in) |
| Gear Ratio | Various ZF, Twin Disc, or CAT options |
Competitor Comparison
| Feature | CAT C12.9 (1000 HP) | Volvo Penta D13-1000 (1000 HP) | MAN D2868 LE438 (1000 HP) |
|---|---|---|---|
| Engine Type | In-line 6-cylinder ACERT turbo diesel | In-line 6-cylinder common-rail twin-turbo | In-line 8-cylinder common-rail turbo |
| Power | 1000 HP @ 2300 rpm | 1000 HP @ 2400 rpm | 1000 HP @ 2100 rpm |
| Fuel Efficiency | Good (215 g/kWh cruise) | Excellent (205 g/kWh cruise) | Good (210 g/kWh cruise) |
| Weight (Dry) | 1,325 kg | 1,350 kg | 1,450 kg |
| Reliability | Legendary (CAT global uptime) | High (EMS precision) | High (MAN commercial robustness) |
| Parts Availability | Excellent (CAT worldwide network) | Excellent (Volvo marine dealers) | Excellent (MAN ecosystem) |
Verdict: The CAT C12.9 wins for commercial operators and repower projects with its unmatched parts network, drop-in C12 compatibility, and proven ACERT durability—no urea hassles. Volvo D13-1000 offers superior efficiency for yachts, MAN D2868 LE438 delivers V8 smoothness, but the C12.9’s balance of torque, weight, and support makes it the top choice for heavy-duty marine engine upgrades. As our superyacht propulsion systems guide notes, CAT dominates this power band for fleets.
Replacement Options
| Factor | Keep Old C12 ACERT (Used) | Buy New CAT C12.9 | Closest Modern Equivalent: Volvo Penta D13-1000 |
|---|---|---|---|
| Condition | Fair (injector/turbo wear) | Excellent (factory fresh) | Excellent (common-rail updates) |
| Warranty | None | 2 years unlimited hours | 2 years (extendable) |
| Power | 660-715 HP (degraded) | 850-1000 HP full output | 1000 HP (efficient delivery) |
| Emissions | Tier 2 | Tier 3 (no SCR) | Tier 3 |
| Total Project Value | Low ($0 upfront, rising repairs) | High ($35,000-$50,000 incl. install) | Higher ($38,000-$55,000, premium features) |
Expert Recommendation: For workboat and commercial yacht owners, the CAT C12.9 is the ultimate drop-in repower—direct bolt-up from C12 ACERT with Tier 3 compliance and more power. Volvo D13-1000 for refined pleasure craft, but the C12.9’s support and our CAT expertise deliver the best long-term value. Signs of age in your old C12? Our replacing an old marine diesel engine guide points straight here.
Pros and Cons
| Pros | Cons |
|---|---|
| Direct drop-in for C12 ACERT/3196 beds | Slightly heavier than some competitors |
| Tier 3 without urea/SCR | Fuel use 5-10% higher than common-rail |
| Legendary CAT durability & parts network | Louder than latest designs (80 dB cruise) |
| 850-1000hp ratings for growth | No factory hybrid option yet |
| Keel or heat exchanger cooling options | Premium pricing for commercial ratings |
Building Authority & Internal Linking Strategy
We’ve naturally integrated links to our service pages and blogs throughout, creating intuitive paths that boost engagement and SEO—guiding from education to action.
Service Page Links (Embedded Naturally Above):
- [Marine Engine Installation Services]
- [Boat Repower Consultation]
- [Custom Superyacht Propulsion Solutions]
- [Volvo Parts & Maintenance] (adaptable for CAT context)
Blog Post Links (Embedded Naturally Above):
- [Superyacht Propulsion Systems Guide]
- [Replacing an Old Marine Diesel Engine]
- [Inboard vs Outboard Motors: 2025 Buyer’s Guide]
- [Electric Boat Motors Guide | Top Models 2025] (for hybrid context)
Frequently Asked Questions (FAQs) About the Caterpillar C12.9 Marine Engine
From our 100+ C12.9 service calls—straight answers for operators.
Is the CAT C12.9 a direct replacement for C12 ACERT?
Yes—same footprint, mounts, and exhaust; often bolt-in with minor wiring updates.
C12.9 vs C12 ACERT—what’s the difference?
C12.9 adds Tier 3 compliance, higher ratings (to 1000hp), updated HEUI, and better fuel mapping—10-15% cleaner.
Fuel burn on C12.9 at cruise?
215-225 g/kWh typical—solid for Tier 3 without SCR; expect 1.8-2.5 L/nm depending on load.
Common C12.9 issues and fixes?
HEUI injector drift (clean/replace $3K set); aftercooler corrosion in salt—our diagnostics catch early.
Best applications for CAT C12.9?
Workboats, crew boats, trawlers, high-end yachts—anywhere 800-1000hp and CAT support matter.
Parts availability for C12.9 in 2025?
Outstanding—Caterpillar fully supports; we stock injectors, turbos, ECMs for next-day delivery.
Power your mission—contact us for a C12.9 assessment today.
