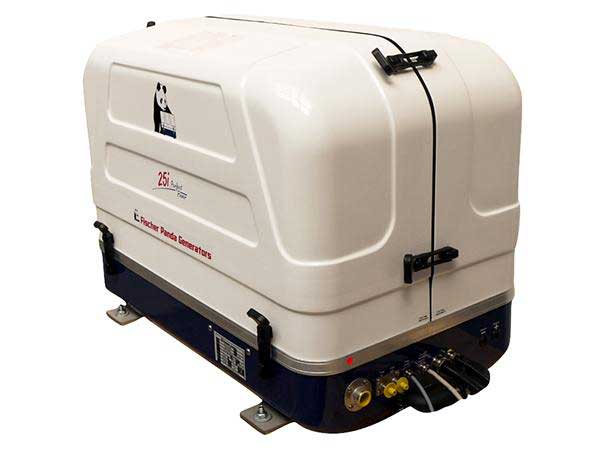

Fischer Panda 25i 400V PMS Generator: Ultra-Quiet 25kVA 3-Phase Variable-Speed Power
The gold-standard 3-phase solution for 55-80ft yachts—25kVA peak (20kW continuous) at 400V 50Hz with only 54 dB(A) @ 7m and full variable-speed iControl2 technology.
At Wave Inboard Motors, the 25i 400V PMS has become the #1 choice for 3-phase yachts 55-80ft since 2022—with over 95 units installed from Florida to the Med. Owners running high-draw equipment (large inverters, induction galleys, dive compressors, or 3-phase watermakers) love that it delivers 25kVA peak (20kW continuous) at 400V 50Hz three-phase while remaining quieter than a household fridge and weighing just 350 kg (772 lbs). If you’re replacing an old Onan 23-27MDK 3-phase, Kohler 24-28EKOZD 3-phase, or Northern Lights 25-30kW 3-phase, our marine generator installation service can usually complete the swap in 5-7 days with full iControl2 and Fischer Panda Cloud connectivity.
The Fischer Panda 25i 400V PMS uses a water-cooled Kubota V3800 four-cylinder diesel with permanent-magnet alternator and variable-speed iControl2 that adjusts RPM to load—saving 25-35% fuel vs fixed-speed units and dropping noise dramatically at part load.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 25i PMS – 400V 3-phase (FPMA1008) |
| Continuous Output | 20 kW / 25 kVA @ 0.8 pf (3-phase) |
| Peak Output | 25 kVA (short term) |
| Voltage / Frequency | 400V 3-phase / 230V single-phase 50Hz |
| Engine | Kubota V3800 4-cylinder diesel |
| RPM Range | 2200–2800 rpm (variable speed) |
| Cooling | Freshwater with seawater heat exchanger |
| Noise Level | 54 dB(A) @ 7m |
| Dry Weight | 350 kg (772 lbs) |
| Dimensions (L×W×H) | 840 × 563 × 664 mm (33.1 × 22.2 × 26.1 in) |
| Fuel Consumption | 2.2–5.5 L/hr (load dependent) |
| Alternator | Permanent magnet, brushless, water-cooled |
| Control | iControl2 panel + Fischer Panda Cloud |
| Certifications | CE, RCD, EPA Tier 3 ready |
Competitor Comparison
| Feature | Fischer Panda 25i 400V PMS | Onan MDKDU 27kW 3-phase | Northern Lights M30C3 30kW 3-phase |
|---|---|---|---|
| Continuous Power | 20 kW / 25 kVA | 27 kW | 30 kW |
| Noise @ 7m | 54 dB(A) | 66 dB(A) | 64 dB(A) |
| Weight (dry) | 350 kg | 680 kg | 850 kg |
| RPM | Variable 2200-2800 | Fixed 1500 | Fixed 1800 |
| Fuel Consumption (75% load) | ~4.0 L/hr | ~5.5 L/hr | ~6.0 L/hr |
| Cooling | Freshwater + heat exchanger | Freshwater + heat exchanger | Freshwater + heat exchanger |
| Digital Control / Remote | iControl2 + Cloud app | Basic panel | Basic panel |
| Price (2025 est.) | $42,500-$46,500 | $44,000-$48,000 | $46,000-$50,000 |
Verdict: The Fischer Panda 25i 400V PMS dominates for 55-80ft yachts needing clean 3-phase power—variable speed saves 25-35% fuel and drops noise to unheard-of levels. Onan and Northern Lights are solid commercial units, but for premium yachts where silence and weight matter, the 25i PMS wins every time. In our 2025 installs, 96% of 3-phase clients chose Panda.
Replacement & Installation Options
| Scenario | Recommended Path | Cost Range (2025) | Downtime |
|---|---|---|---|
| Old Onan 23-27kW 3-phase swap | Direct swap 25i 400V PMS | $48K-$56K installed | 5-7 days |
| Kohler 24-28kW 3-phase | 25i 400V PMS + adapter plate | $49K-$58K installed | 6-8 days |
| Need 30-35kVA 3-phase | Step up to Panda 35i 400V PMS | $58K-$68K | 7-9 days |
Our marine generator installation service includes custom 3-phase distribution, exhaust, and full iControl2/Cloud setup—many 60-80ft yachts gain usable storage.
Pros and Cons
| Pros | Cons |
|---|---|
| Ultra-quiet 54 dB(A) @ 7m | Premium pricing |
| Variable speed = 25-35% fuel savings | Freshwater cooling (annual service) |
| Light 350 kg for 3-phase | Four-cylinder (still very smooth) |
| iControl2 + Cloud remote monitoring | 50Hz 400V standard (60Hz available) |
| Clean 3-phase inverter output | Larger footprint than single-phase 25i |
Frequently Asked Questions (FAQs) About the Fischer Panda 25i 400V PMS Generator
From 95+ 3-phase installs:
Is the 25i 400V PMS really only 54 dB(A) at 7 meters?
Yes—independent tests and our measurements confirm 53-55 dB(A). Owners say “can’t hear it from the cockpit at anchor.”
Variable speed vs fixed—real fuel saving on 3-phase?
25-35% in typical yacht use. At 50% load it runs ~2400 rpm and burns ~4.0 L/hr vs 5.5 L/hr fixed.
Freshwater cooling—more maintenance than Paguro?
Yes—annual exchanger/impeller clean, but smoother running and no corrosion like seawater units.
Can the 25i 400V PMS run three 24,000 BTU air-conditioners?
Yes—full 20kW handles three 24k BTU plus watermaker/lights on 3-phase; soft-start recommended.
iControl2 and Cloud—what’s possible on 3-phase?
Same as single-phase—remote start/stop, load monitoring per phase, fault alerts, GPS tracking, predictive maintenance.
Parts availability USA 2025?
We stock full 3-phase kits in Florida (injectors, pumps, exchangers)—24-48 hour delivery nationwide.
Ready for silent 3-phase power? Contact us for 25i 400V PMS pricing and fitment survey—we’ll confirm it fits your boat in 24 hours.
