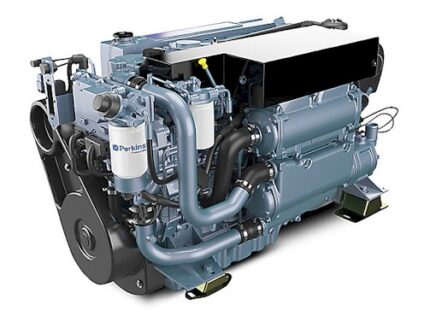

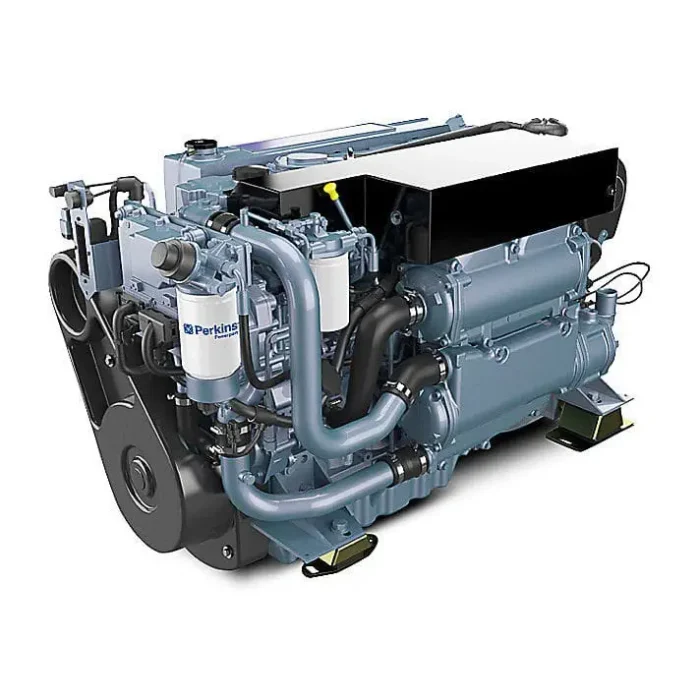

Perkins M300C: The Industrial-Grade 300hp Marine Diesel Engine
Built for relentless power and legendary durability in the most demanding marine environments.
Introduction
In the world of commercial marine propulsion, where downtime is not an option, the Perkins M300C 300hp marine diesel engine has earned its reputation as a workhorse. At Wave Inboard Motors, our deep, hands-on experience with this model comes from years of providing Marine Engine Installation Services and 【Scheduled Marine Diesel Maintenance】 for fishing fleets, charter operators, and workboat captains who depend on the M300C’s brute-force reliability.
This engine is engineered for demanding applications, serving as the prime power source for mid-size commercial fishing vessels, pilot boats, and heavy-duty yachts in the 40-60 foot range. Its robust design prioritizes torque and long-term durability over lightweight compactness, making it a go-to for owners who value operational hours over flashy specs.
Many commercial operators considering a marine diesel repower face a critical choice: rebuild, repower with a proven model like the M300C, or upgrade to a modern electronic engine. Based on our extensive fleet support, we understand this decision is about total cost of ownership. For a comprehensive look at this process, our guide 【Calculating the True Cost of a Marine Repower】 provides an essential framework for your investment.
Technical Specifications Table
| Specification | Detail |
|---|---|
| Model | Perkins M300C (Also marketed as Sabre M300C) |
| Engine Type | 6-Cylinder, 4-Stroke, Turbocharged & Aftercooled Diesel |
| Displacement | 6.0 L |
| Max Output | 300 HP (224 kW) @ 2400 RPM |
| Peak Torque | Approx. 965 Nm @ 1400 RPM |
| Bore x Stroke | 102 mm x 120 mm |
| Compression Ratio | 16.5:1 |
| Cooling System | Freshwater Heat Exchanger |
| Starting System | 24V Electric Start |
| Alternator Output | 24V, 70A (Typical) |
| Dry Weight | Approx. 780 kg (1,720 lbs) |
| Dimensions (LxWxH) | Approx. 1450mm x 750mm x 1050mm |
| Gear Ratio Options | Various available (e.g., ZF 220A, 2.04:1) |
Competitor Comparison Table
| Feature | Perkins M300C | Volvo Penta D6-300 | Yanmar 6LY3-ETP |
|---|---|---|---|
| Engine Type | Mechanical Injection, Industrial Base | Electronic Common Rail, Leisure Focus | Electronic Injection, Mixed Use |
| Power & Torque | High Torque at Low RPM | High Power, Broader Curve | High Power, Good Torque |
| Fuel Efficiency | Excellent at Peak Load | Excellent across range | Excellent |
| Weight | 1720 lbs (Heavy-Duty) | 1250 lbs | 1285 lbs |
| Reliability/Complexity | Legendary, Simple Mechanics | High, Complex Electronics | High, Complex Electronics |
| Parts & Service Cost | Lower, Globally Available | Higher, Dealer Network | Higher, Dealer Network |
Verdict: The Perkins M300C is the undisputed choice for pure, no-nonsense durability and lower lifetime operating costs. While the Volvo Penta D6-300 and Yanmar 6LY3 offer smoother operation and advanced electronics, the M300C’s mechanical heart makes it supremely serviceable in remote locations. Its industrial pedigree means it’s built to handle continuous heavy loads that would stress lighter, leisure-focused blocks. We explore this critical trade-off in our article 【Mechanical vs. Electronic Marine Engines: A Captain’s Guide】.
Replacement Options Table
| Option | Major Overhaul of Old Engine | Repower with Perkins M300C | Repower with Modern Electronic Engine |
|---|---|---|---|
| Condition | “Zero-Hour” but Old Design | Proven, Re-manufactured or New-Old-Stock | Brand New with Latest Tech |
| Warranty | Limited (on workmanship) | Strong Manufacturer/Reman Warranty | Full Manufacturer Warranty |
| Performance | Restored to Original | Reliable, Proven Power | Optimal Power & Efficiency |
| Operational Cost | Lower Initial, Unpredictable | Predictable, Known Low Cost | Higher Fuel Eff., Potentially Higher Part Cost |
| Resale/Vessel Value | Minimal Increase | Significant Increase | Maximum Increase |
Expert Recommendation: For commercial operators where predictability and low operational cost are paramount, the Perkins M300C represents the sweet spot. It offers a massive leap in reliability over an aging powerplant without the steep parts and specialized service costs of modern electronic engines. Our 【Marine Engine Repowering Solutions】 are tailored to get you back on the water with minimal downtime and maximum value. For a high-use leisure vessel where quietness and smoothness are priorities, the case for a modern engine is stronger.
Pros and Cons Table
| Pros | Cons |
|---|---|
| Unmatched Mechanical Durability & Simplicity | Heavier & Larger than comparable horsepower modern engines |
| Excellent Low-RPM Torque for heavy loads | Mechanical Injection lacks the fuel efficiency of modern common rail |
| Global Parts Availability & Lower Cost | Not as smooth or quiet as newer 6-cylinder engines |
| Ideal for Continuous Heavy-Duty Operation | Requires diligent 【Scheduled Marine Diesel Maintenance】 to achieve full lifespan |
| Less Dependent on Complex Electronics | May not meet the latest Tier 2 emissions regulations in all regions |
