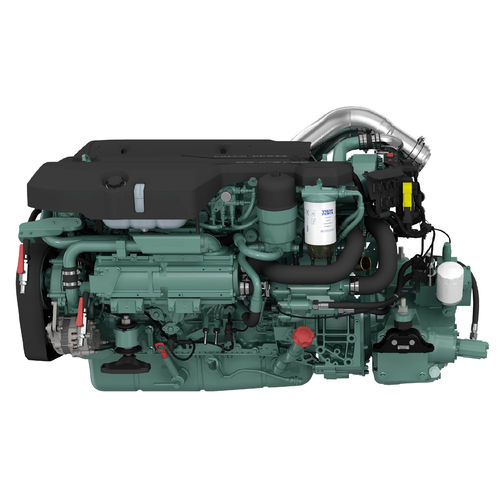

Volvo Penta D8-600: The High-Performance 600hp Marine Diesel Engine
Advanced power and torque for demanding commercial applications and high-performance motor yachts.
Introduction
When mission-critical performance and robust power are non-negotiable, the Volvo Penta D8-600 stands as a benchmark in its class. At Wave Inboard Motors, our experience with commissioning and servicing these elite powerplants has provided deep insight into their exceptional capabilities. This engine represents the pinnacle of the D8 series, delivering relentless 600hp power through advanced engineering, making it the ultimate choice for a high-performance marine diesel engine repower where every horsepower counts.
This 600hp inline-six engine is engineered for the most demanding marine environments, from high-speed commercial vessels and luxury motor yachts to specialized patrol craft and fast ferries. Its massive displacement and sophisticated common-rail injection system combine to produce breathtaking torque and exceptional fuel efficiency for its power output. For operators who demand peak performance without compromise, the Volvo Penta D8-600 delivers unmatched propulsion excellence.
On this page, we’ll leverage our specialized expertise to provide a comprehensive analysis of this formidable engine, from its robust specifications to the critical considerations for a successful installation.
Technical Specifications Table
| Specification | Detail |
|---|---|
| Model | Volvo Penta D8-600 |
| Engine Type | Inline-6, 4-Stroke, Turbocharged & Aftercooled Common-Rail Diesel |
| Displacement | 7.7 L |
| Max Output | 600 HP (441 kW) @ 1800-2200 RPM |
| Bore x Stroke | 110 mm x 135 mm |
| Compression Ratio | 17.0:1 |
| Cooling System | Freshwater with Heat Exchanger |
| Starting System | 24V Electric Start |
| Alternator Output | 2 x 115A (24V) |
| Dry Weight | Approx. 1145 kg (2524 lbs) |
| Dimensions (LxWxH) | 1562 mm x 1162 mm x 1275 mm |
| Gear Ratio | Varies (Matched to application with robust marine gear) |
Ideal Vessels for the Volvo Penta D8-600:
-
High-Performance Motor Yachts (60-85 feet)
-
Fast Commercial Vessels & Patrol Boats
-
Luxury Catamarans & Expedition Yachts
-
Specialized Commercial & Government Vessels
Competitor Comparison Table
| Feature | Volvo Penta D8-600 | Cummins QSM11 600 | Caterpillar C9.3B 600 |
|---|---|---|---|
| Engine Type | Common-Rail, Turbocharged | Common-Rail, Turbocharged | HEUI Injection, Turbocharged |
| Power (HP) | 600 @ 1800-2200 RPM | 600 @ 2100 RPM | 600 @ 2000 RPM |
| Displacement | 7.7 L | 10.8 L | 9.3 L |
| Weight | 2524 lbs | 2850 lbs | 2750 lbs |
| Technology Level | High (Advanced Electronics) | High | High |
| Parts Availability | Good (Global Marine Network) | Excellent (Global Industrial/Marine) | Excellent |
| Key Differentiator | Best Power-to-Weight in Class | Proven High-Displacement Reliability | Legendary CAT Durability |
Verdict: The Volvo Penta D8-600 achieves its impressive power output from the most compact and lightweight package in its class, providing significant advantages in weight-sensitive performance applications. The Cummins QSM11 utilizes larger displacement to generate its power, favored for its robust, traditional engineering. The Caterpillar C9.3B carries the brand’s unmatched reputation for industrial strength. The optimal choice depends on specific installation constraints, brand preference, and operational requirements.
Replacement Options Table
| Option | Major Overhaul on Existing Engine | Source Rebuilt/Reman D8 | Repower with New D8-600 |
|---|---|---|---|
| Condition | Known Internals | Factory Spec, Warranted | Brand New, Zero Hours |
| Warranty | 6-12 Month on Work | 1-2 Year (Typically) | Full Volvo Penta Warranty |
| Performance | Restored to Original Spec | Restored to Original Spec | Latest Performance & Efficiency |
| Electronics | Potential for obsolete components | Updated to latest standards | Latest Generation, Fully Supported |
| Total Project Value | Medium-High | High | Highest (Peak Reliability & Resale) |
Expert Recommendation: For commercial operations where performance and reliability directly impact revenue, the certainty of a new Volvo Penta D8-600 represents the most sound investment. The comprehensive factory warranty and latest engineering enhancements provide unparalleled operational security. A certified factory-remanufactured engine serves as an excellent cost-effective alternative. A major overhaul should only be considered on a well-maintained, low-hour block with comprehensive service history. Our process always begins with a thorough commercial marine engine survey to determine the optimal path forward.
Pros and Cons Table
| Pros | Cons |
|---|---|
| Exceptional Power-to-Weight Ratio | Premium Initial Investment |
| Advanced Common-Rail Efficiency | Requires Specialized Service Expertise |
| Compact Dimensions for 600hp Output | Complex Electronic Systems |
| Global Dealer & Parts Network | Critical dependence on fuel quality |
| Designed for High-Performance Applications |
Frequently Asked Questions (FAQ)
Q1: What maintenance is most critical for the D8-600?
A: Beyond standard maintenance protocols, immaculate fuel management is absolutely non-negotiable. This requires high-quality primary and secondary fuel filtration with regular water separation. The high-pressure common-rail system is exceptionally sensitive to contaminated fuel, and repair costs can be substantial.
Q2: How does the D8-600 compare to the D8-550 model?
A: The D8-600 represents the performance-optimized version of the D8 platform, delivering additional horsepower through advanced tuning and engineering refinements while maintaining the same robust displacement and physical dimensions.
Q3: What installation requirements are unique to this engine?
A: A professional marine engine installation for the D8-600 is essential. This includes engineering and fabricating engine beds capable of handling significant torque, ensuring perfect propulsion system alignment, and integrating sophisticated cooling and exhaust systems designed for high-output operation.
Q4: Can this engine be used in twin installation configurations?
A: Absolutely. The D8-600 is an excellent choice for twin-engine installations in larger motor yachts and commercial vessels, providing exceptional power redundancy and precise maneuverability through integrated electronic control systems.
